16 AWG Shielded VNTC Tray Cable PVC Nylon PVC 600V Type TC-ER
Conductor:
Copper Stranded Conductor
Insulation:
PVC+Nylon
Jacket:
PVC
Shield:
Overall aluminum polyester
Rated Voltage:
600V
Temperature range:
90℃
Size range:
18AWG -10AWG
Standard:
UL 1277
Color:
Black
Description
Download


Conductor
Copper Stranded Conductor (filled or unfilled)

Insulation and Jacket
PVC+Nylon Insulation & PVC Jacket

Shield
Overall aluminum polyester

Temperature Rating
90°C

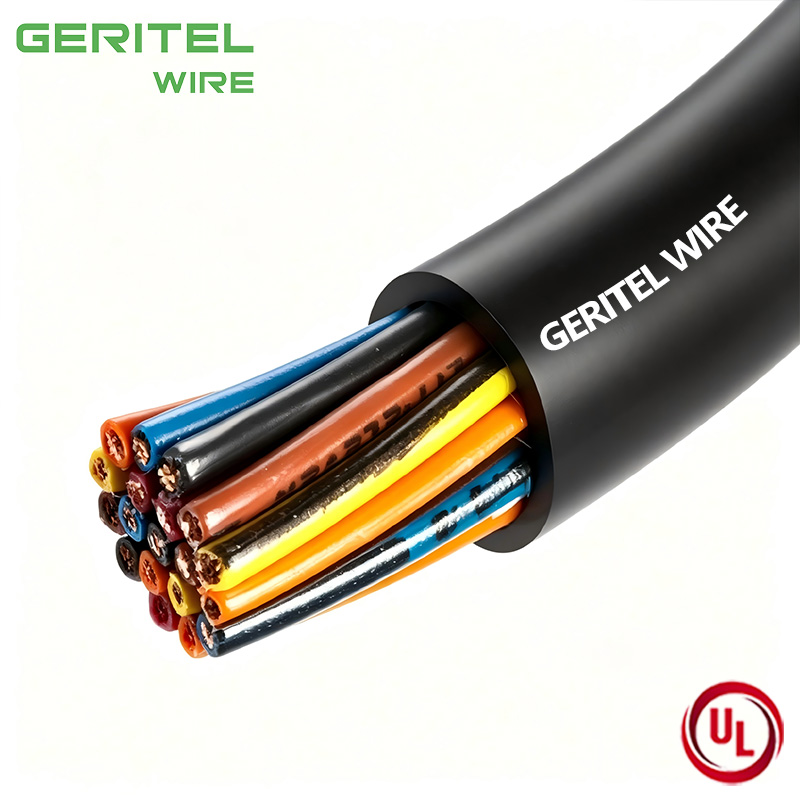

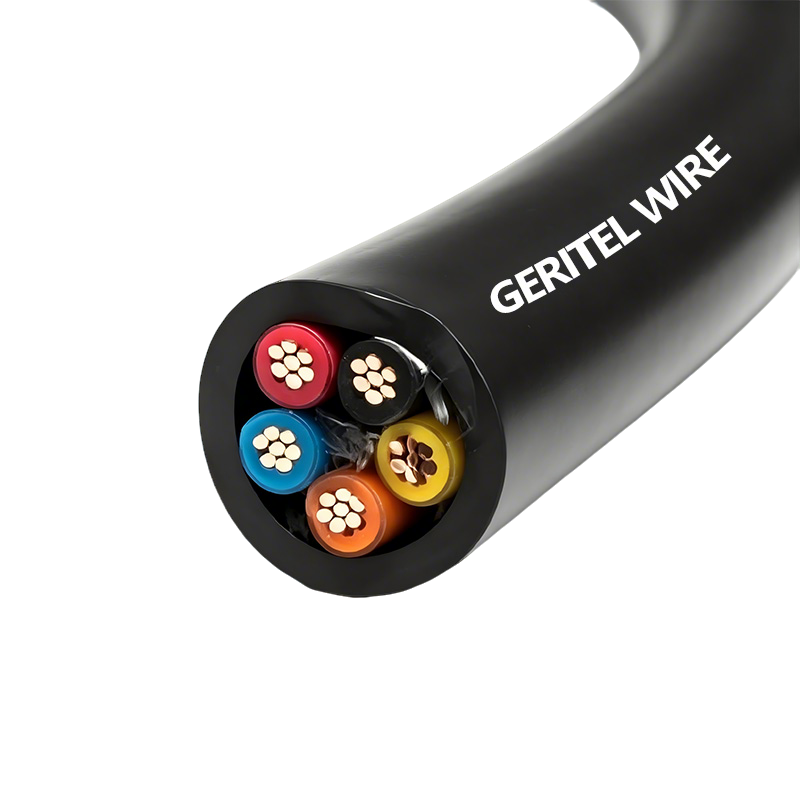

16 AWG Shielded TC-ER Control Cable – Lightweight Shielded Control for Sensor and Instrumentation Circuits
This 16 AWG shielded TC-ER control cable is designed for sensor and instrumentation circuits requiring lightweight, flexible cabling with reliable signal protection. Featuring stranded bare copper conductors, PVC insulation with a nylon layer, an overall shield, and a durable PVC jacket, this cable delivers dependable performance in factory automation and process control applications. UL1277 and UL83 certified with a 600V rating, it is Type TC-ER rated for exposed run installations in cable trays without conduit, simplifying installation and reducing costs. The overall shield provides effective protection against electromagnetic interference, ensuring signal integrity for sensitive sensor and instrumentation signals. The 16 AWG size offers excellent flexibility and a lightweight design, making it ideal for applications with multiple conductors and tight routing requirements.

TC-ER Control Cable
These shielded TC-ER control cables feature stranded bare copper conductors with PVC insulation covered by a nylon layer, an overall shield, and a durable PVC jacket. UL1277 and UL83 certified with a 600V rating, they are Type TC-ER rated for exposed run installations in cable trays without conduit. The PVC/nylon insulation provides excellent resistance to abrasion, oil, and moisture, while the overall shield protects against electromagnetic interference. These cables are ideal for factory automation, instrumentation control, sensor systems, and industrial equipment connections requiring reliable signal transmission in electrically noisy environments.

Conductors:Copper Stranded

Rated Voltage:600V

Insulated:PVC+Nylon

Jacket:PVC

Standards:UL1277&UL83

Temperature range:90℃
Advantages of 16 AWG Shielded TC-ER Tray Cable PVC Nylon PVC 600V
The lightweight 16 AWG design simplifies installation in applications with multiple conductors and complex routing requirements. The overall shield provides effective electromagnetic interference protection, ensuring clean signal transmission for sensitive sensors and instrumentation. The PVC/nylon insulation offers excellent resistance to abrasion, oil, and moisture, ensuring long-term reliability in industrial environments. The TC-ER rating eliminates the need for conduit, reducing installation time and simplifying future modifications.

Product Description
The PVC/Nylon/PVC (THHN/THWN-2), 600V Control, Type TC-ER and Direct Bural Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Polyvinyl Chloride (PVC) and clear Nylon insulation, unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.
Applications
- In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations
- In wet or dry locations
- Approved for Class I, Div. 2 industrial hazardous locations per NEC
- Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only
Features
- Rated at 90°C wet or dry
- Meets cold bend test at -25°C
- Ripcord (as needed)
- Excellent sunlight resistance

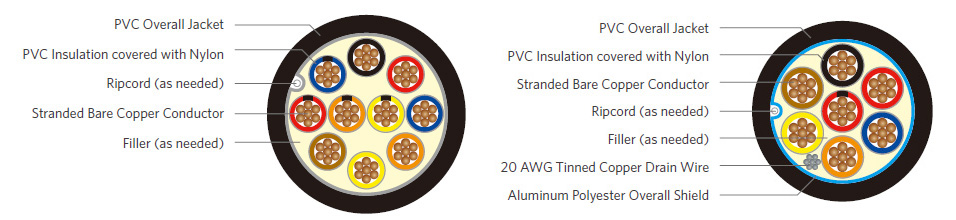

| SPECIFICATIONS | |
|---|---|
| Conductor Count | Available in 2 through 37 conductors |
| Conductor | Fully annealed bare copper Class B |
| Gauge Sizes | Available in 18 through 10 AWG |
| Insulation | Polyvinyl Chloride (PVC) covered
|
| Color Coding | Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available |
| Fillers | Non-hygroscopic fillers, as necessary to obtain a circular cross section |
| Shield (optional) | Overall aluminum polyester (mylar) foil in contact with 20 AWG stranded tinned copper drain wire |
| Jacket | Polyvinyl Chloride (PVC) |
| Jacket Marking |
Conductor sizes 18 AWG – 16 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C PVC/NYLON PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY Conductor sizes 14 AWG – 10 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C THHN/THWN-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances |
ASTM B8, ASTM B33 UL 83 UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 ANSI/NEMA WC 57/ICEA S-73-532 NEC |
| Other Compliances |
EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant |
Unshielded
| Conductor Count |
Conductor Size AWG |
Insulation Thickness in (mm) |
Jacket Thickness in (mm) | Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
| 2 | 18 | 0.020(0.51) | 0.045(1.14) | 0.28(7.1) | 40(56) |
| 3 | 18 | 0.020(0.51) | 0.045(1.14) | 0.29(7.5) | 50(69) |
| 4 | 18 | 0.020(0.51) | 0.045(1.14) | 0.32(8.0) | 60(84) |
| 5 | 18 | 0.020(0.51) | 0.045(1.14) | 0.34(8.7) | 70(99) |
| 7 | 18 | 0.020(0.51) | 0.045(1.14) | 0.37(9.4) | 85(126) |
| 9 | 18 | 0.020(0.51) | 0.045(1.14) | 0.43(10.9) | 110(158) |
| 12 | 18 | 0.020(0.51) | 0.045(1.14) | 0.47(12.0) | 135(199) |
| 19 | 18 | 0.020(0.51) | 0.045(1.14) | 0.55(14.0) | 205(298) |
| 25 | 18 | 0.020(0.51) | 0.060(1.52) | 0.67(17.1) | 280(414) |
| 37 | 18 | 0.020(0.51) | 0.060(1.52) | 0.76(19.4) | 390(573) |
| 2 | 16 | 0.020(0.51) | 0.045(1.14) | 0.30(7.7) | 50(69) |
| 3 | 16 | 0.020(0.51) | 0.045(1.14) | 0.32(8.1) | 60(88) |
| 4 | 16 | 0.020(0.51) | 0.045(1.14) | 0.35(8.8) | 75(109) |
| 5 | 16 | 0.020(0.51) | 0.045(1.14) | 0.37(9.5) | 90(130) |
| 7 | 16 | 0.020(0.51) | 0.045(1.14) | 0.40(10.3) | 115(168) |
| 9 | 16 | 0.020(0.51) | 0.045(1.14) | 0.47(12.0) | 145(211) |
| 12 | 16 | 0.020(0.51) | 0.045(1.14) | 0.52(13.3) | 185(269) |
| 16 | 16 | 0.020(0.51) | 0.060(1.52) | 0.61(15.6) | 255(378) |
| 19 | 16 | 0.020(0.51) | 0.060(1.52) | 0.64(16.4) | 295(435) |
| 25 | 16 | 0.020(0.51) | 0.060(1.52) | 0.75(18.9) | 380(560) |
| 30 | 16 | 0.020(0.51) | 0.060(1.52) | 0.79(20.0) | 440(653) |
| 37 | 16 | 0.020(0.51) | 0.060(1.52) | 0.85(21.5) | 530(784) |
| 2 | 14 | 0.020(0.51) | 0.045(1.14) | 0.33(8.4) | 60(88) |
| 3 | 14 | 0.020(0.51) | 0.045(1.14) | 0.35(8.8) | 80(115) |
| 4 | 14 | 0.020(0.51) | 0.045(1.14) | 0.38(9.6) | 100(143) |
| 5 | 14 | 0.020(0.51) | 0.045(1.14) | 0.41(10.4) | 120(172) |
| 7 | 14 | 0.020(0.51) | 0.045(1.14) | 0.45(11.3) | 155(226) |
| 9 | 14 | 0.020(0.51) | 0.045(1.14) | 0.52(13.2) | 195(285) |
| 12 | 14 | 0.020(0.51) | 0.060(1.52) | 0.61(15.5) | 265(393) |
| 19 | 14 | 0.020(0.51) | 0.060(1.52) | 0.71(18.1) | 400(591) |
| 25 | 14 | 0.020(0.51) | 0.060(1.52) | 0.83(21.0) | 515(763) |
| 30 | 14 | 0.020(0.51) | 0.060(1.52) | 0.87(22.2) | 605(895) |
| 37 | 14 | 0.020(0.51) | 0.080(2.03) | 0.98(25.0) | 765(1,138) |
| 2 | 12 | 0.020(0.51) | 0.045(1.14) | 0.37(9.3) | 80(117) |
| 3 | 12 | 0.020(0.51) | 0.045(1.14) | 0.39(9.8) | 110(157) |
| 4 | 12 | 0.020(0.51) | 0.045(1.14) | 0.42(10.7) | 135(198) |
| 5 | 12 | 0.020(0.51) | 0.045(1.14) | 0.46(11.7) | 165(240) |
| 7 | 12 | 0.020(0.51) | 0.045(1.14) | 0.50(12.7) | 215(318) |
| 9 | 12 | 0.020(0.51) | 0.060(1.52) | 0.62(15.7) | 290(431) |
| 12 | 12 | 0.020(0.51) | 0.060(1.52) | 0.69(17.4) | 375(553) |
| 19 | 12 | 0.020(0.51) | 0.060(1.52) | 0.80(20.3) | 565(840) |
| 25 | 12 | 0.020(0.51) | 0.080(2.03) | 0.98(24.8) | 775(1,147) |
| 30 | 12 | 0.020(0.51) | 0.080(2.03) | 1.03(26.2) | 905(1,344) |
| 37 | 12 | 0.020(0.51) | 0.080(2.03) | 1.11(28.2) | 1,090(1,622) |
| 2 | 10 | 0.025(0.64) | 0.045(1.14) | 0.43(11.0) | 115(169) |
| 3 | 10 | 0.025(0.64) | 0.045(1.14) | 0.46(11.7) | 160(231) |
| 4 | 10 | 0.025(0.64) | 0.045(1.14) | 0.50(12.8) | 200(295) |
| 5 | 10 | 0.025(0.64) | 0.060(1.52) | 0.58(14.8) | 260(385) |
| 7 | 10 | 0.025(0.64) | 0.060(1.52) | 0.63(16.1) | 345(511) |
| 9 | 10 | 0.025(0.64) | 0.060(1.52) | 0.74(18.9) | 435(647) |
| 12 | 10 | 0.025(0.64) | 0.060(1.52) | 0.83(21.0) | 565(836) |
Overall Shielded
| Conductor Count |
Conductor Size AWG | Insulation Thickness in (mm) |
Jacket Thickness in (mm) |
Approx. Overall Diameter |
Approx. Net Weight lbs/kft (kg/km) |
|---|---|---|---|---|---|
| 2 | 18 | 0.020(0.51) | 0.045(1.14) | 0.28(7.2) | 45(62) |
| 3 | 18 | 0.020(0.51) | 0.045(1.14) | 0.30(7.5) | 55(76) |
| 4 | 18 | 0.020(0.51) | 0.045(1.14) | 0.32(8.1) | 65(91) |
| 5 | 18 | 0.020(0.51) | 0.045(1.14) | 0.34(8.8) | 75(106) |
| 7 | 18 | 0.020(0.51) | 0.045(1.14) | 0.37(9.4) | 90(133) |
| 9 | 18 | 0.020(0.51) | 0.045(1.14) | 0.43(10.9) | 115(165) |
| 12 | 18 | 0.020(0.51) | 0.045(1.14) | 0.48(12.1) | 140(207) |
| 19 | 18 | 0.020(0.51) | 0.045(1.14) | 0.56(14.1) | 210(306) |
| 25 | 18 | 0.020(0.51) | 0.060(1.52) | 0.68(17.2) | 285(423) |
| 37 | 18 | 0.020(0.51) | 0.060(1.52) | 0.77(19.5) | 395(583) |
| 2 | 16 | 0.020(0.51) | 0.045(1.14) | 0.31(7.8) | 55(76) |
| 3 | 16 | 0.020(0.51) | 0.045(1.14) | 0.32(8.2) | 65(95) |
| 4 | 16 | 0.020(0.51) | 0.045(1.14) | 0.35(8.9) | 80(116) |
| 5 | 16 | 0.020(0.51) | 0.045(1.14) | 0.38(9.6) | 95(137) |
| 7 | 16 | 0.020(0.51) | 0.045(1.14) | 0.41(10.4) | 120(175) |
| 9 | 16 | 0.020(0.51) | 0.045(1.14) | 0.47(12.1) | 150(219) |
| 12 | 16 | 0.020(0.51) | 0.045(1.14) | 0.53(13.4) | 190(277) |
| 16 | 16 | 0.020(0.51) | 0.060(1.52) | 0.62(15.7) | 265(387) |
| 19 | 16 | 0.020(0.51) | 0.060(1.52) | 0.65(16.4) | 300(444) |
| 25 | 16 | 0.020(0.51) | 0.060(1.52) | 0.75(19.0) | 385(569) |
| 30 | 16 | 0.020(0.51) | 0.060(1.52) | 0.79(20.1) | 450(663) |
| 37 | 16 | 0.020(0.51) | 0.060(1.52) | 0.85(21.6) | 535(794) |
| 2 | 14 | 0.020(0.51) | 0.045(1.14) | 0.33(8.4) | 65(94) |
| 3 | 14 | 0.020(0.51) | 0.045(1.14) | 0.35(8.9) | 85(121) |
| 4 | 14 | 0.020(0.51) | 0.045(1.14) | 0.38(9.6) | 105(150) |
| 5 | 14 | 0.020(0.51) | 0.045(1.14) | 0.41(10.4) | 125(179) |
| 7 | 14 | 0.020(0.51) | 0.045(1.14) | 0.45(11.3) | 160(232) |
| 9 | 14 | 0.020(0.51) | 0.045(1.14) | 0.52(13.2) | 200(292) |
| 12 | 14 | 0.020(0.51) | 0.060(1.52) | 0.61(15.4) | 270(400) |
| 19 | 14 | 0.020(0.51) | 0.060(1.52) | 0.71(18.0) | 405(597) |
| 25 | 14 | 0.020(0.51) | 0.060(1.52) | 0.82(20.9) | 520(770) |
| 30 | 14 | 0.020(0.51) | 0.060(1.52) | 0.87(22.0) | 610(902) |
| 37 | 14 | 0.020(0.51) | 0.080(2.03) | 0.98(24.8) | 770(1,144) |
| 2 | 12 | 0.020(0.51) | 0.045(1.14) | 0.37(9.3) | 85(124) |
| 3 | 12 | 0.020(0.51) | 0.045(1.14) | 0.39(9.8) | 110(163) |
| 4 | 12 | 0.020(0.51) | 0.045(1.14) | 0.42(10.7) | 140(205) |
| 5 | 12 | 0.020(0.51) | 0.045(1.14) | 0.46(11.6) | 170(246) |
| 7 | 12 | 0.020(0.51) | 0.045(1.14) | 0.50(12.6) | 220(325) |
| 9 | 12 | 0.020(0.51) | 0.060(1.52) | 0.62(15.6) | 295(438) |
| 12 | 12 | 0.020(0.51) | 0.060(1.52) | 0.69(17.3) | 380(560) |
| 19 | 12 | 0.020(0.51) | 0.060(1.52) | 0.80(20.2) | 570(846) |
| 25 | 12 | 0.020(0.51) | 0.080(2.03) | 0.98(24.6) | 775(1,153) |
| 30 | 12 | 0.020(0.51) | 0.080(2.03) | 1.03(26.0) | 910(1,350) |
| 37 | 12 | 0.020(0.51) | 0.080(2.03) | 1.10(28.0) | 1,095(1,627) |
| 2 | 10 | 0.025(0.64) | 0.045(1.14) | 0.43(11.0) | 120(176) |
| 3 | 10 | 0.025(0.64) | 0.045(1.14) | 0.46(11.7) | 160(238) |
| 4 | 10 | 0.025(0.64) | 0.045(1.14) | 0.50(12.8) | 205(302) |
| 5 | 10 | 0.025(0.64) | 0.060(1.52) | 0.58(14.7) | 265(392) |
| 7 | 10 | 0.025(0.64) | 0.060(1.52) | 0.63(16.0) | 350(517) |
| 9 | 10 | 0.025(0.64) | 0.060(1.52) | 0.74(18.8) | 440(836) |
| 12 | 10 | 0.025(0.64) | 0.060(1.52) | 0.82(20.9) | 570(843) |
Certification
This 600V shielded Electrical Control Cable strictly complies with North American industrial electrical standards and TC-ER cable specification requirements. As qualified shielded pvc nylon pvc 600v control type tc-er cables and standard 600V TC-ER Cables, they have passed professional performance testing on insulation strength, voltage resistance, shielding effectiveness, bending durability and oil corrosion resistance, meeting the standard technical indicators for industrial low-voltage control wiring. As a professional pvc nylon pvc 600v tc-er control cable supplier, we ensure all product electrical parameters and structural performance are fully verified and qualified for commercial and industrial field engineering applications. Every finished cable undergoes rigorous sampling inspection to ensure consistent compliance with industry certification criteria and project access requirements.

Heat-Resistant
Wear Resistance
Mechanical Strength
UL Certificated


APPLICATIONS
This robust shielded electrical control cable features 600V rated voltage and durable PVC nylon composite sheath with an overall shield for enhanced EMI protection. The shielded flexible structure of these shielded pvc nylon pvc 600v control type tc-er cables makes installation simpler while protecting sensitive signals from electromagnetic interference. Supplied by professional pvc nylon pvc 600v tc-er control cable supplier, these standard 600V TC-ER Cables are widely used for automated production lines, mechanical equipment control circuits, industrial cabinet wiring, instrumentation systems, and low-voltage control system connections where signal integrity is critical.

Industrial Plant
Suitable for general manufacturing factory workshop control wiring, production line signal transmission and workshop auxiliary equipment circuit connection. It resists daily dust, oil pollution and mechanical friction to ensure stable factory operation.

Mining Facility
Applicable for mining site auxiliary equipment control and short-distance signal wiring. The sturdy anti-abrasion sheath adapts to harsh mining environments with frequent vibration and complex on-site conditions for safe control circuit operation.

Power Plant
Ideal for power plant low-voltage auxiliary control system wiring, equipment signal collection and cabinet internal control wiring. It provides stable and reliable circuit guarantee for daily power plant auxiliary operation.

Water Treatment Plant
Perfect for water treatment equipment control wiring, pump unit signal connection and sewage plant automatic control system circuits. It features moisture and corrosion resistance, adapting to humid water plant working environments.
Customer Photos
We provide real product shooting pictures and on-site industrial wiring application cases. Authentic visual materials intuitively display cable texture, bending performance and actual wiring effects for customer project reference.

plant equipment
Our production workshop is equipped with professional cable extrusion equipment, precision stranding machines and finished product testing devices. Strict raw material screening and full-process quality monitoring ensure stable and uniform cable quality for every batch.






Packaging Information
Adopting standard export-grade coiled packaging with waterproof and dustproof outer wrapping. The exclusive packaging method effectively prevents friction damage and moisture erosion during long-distance transportation, ensuring intact product delivery.

Pallet Packaging

Large Wooden Reel

Large Wooden Reel

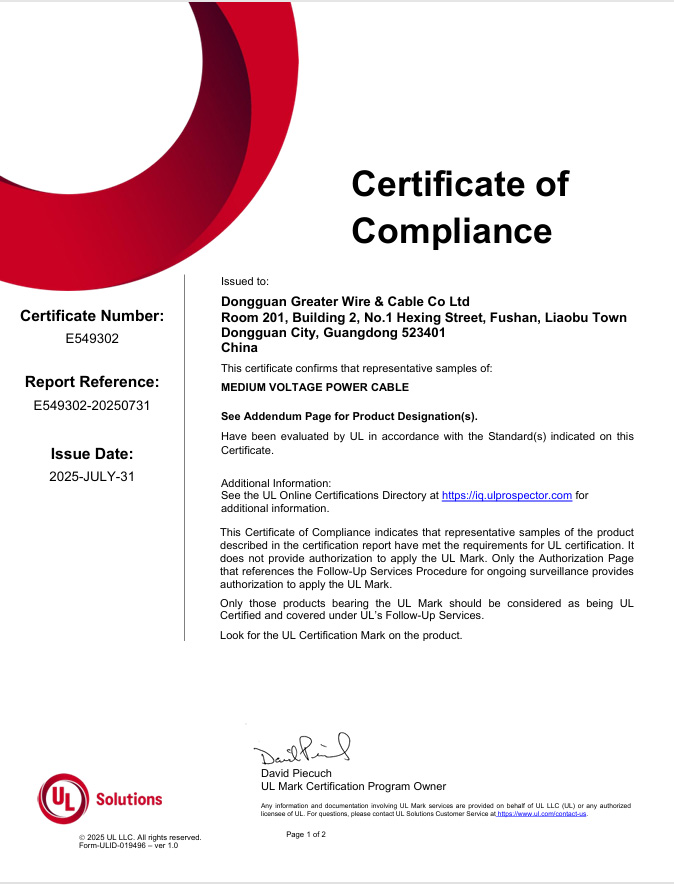

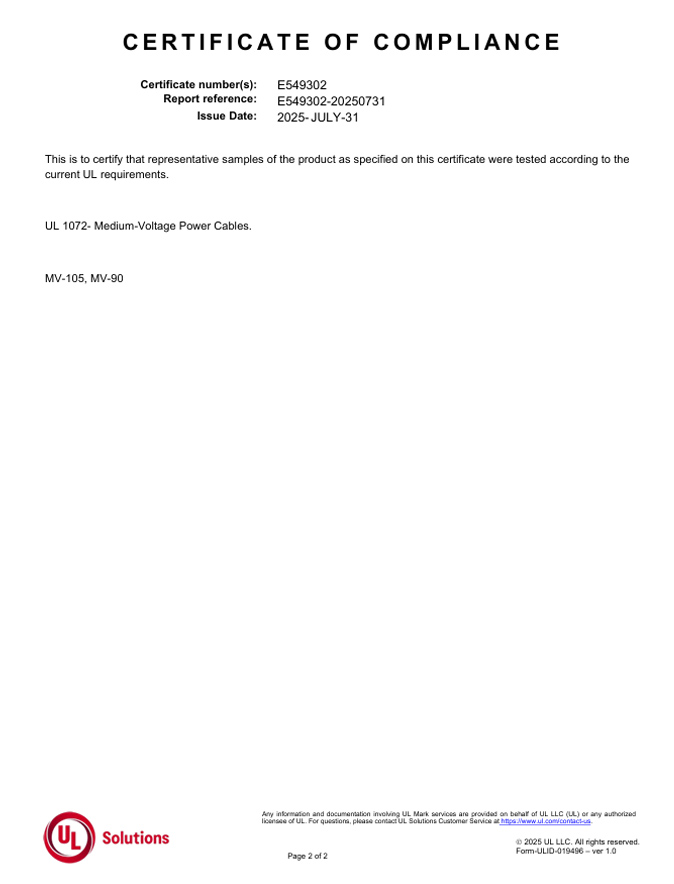

Global Certification
Our company holds a full set of global authoritative electrical industry certifications, covering mainstream qualification accreditations required for overseas cable engineering projects. Complete standardized certification systems fully demonstrate our professional manufacturing strength and product quality credibility, supporting smooth project acceptance and long-term global business cooperation.

VDE

UL

SAA

TUV

ISO
What are people saying about us
Global industrial equipment suppliers and engineering customers recognize our stable cable performance, rigorous quality control and efficient supply service. We always provide targeted industrial control cable solutions for various automation wiring projects.


Luis Fernando Pérez - Venezuela - Office Building Project
The wires are of very good quality. The cables need to pass through long pipes and corners, and the cables are very flexible. We also ordered fire-resistant wires, which have been tested by a testing agency and found to be without problems.


Thomas Baker - USA - Factory construction
GERITEL WIRE's engineering team was very professional. They offered suggestions based on our cable requirements, and we found more suitable cable models. Subsequent operation has been stable without any problems.


Ricardo José Herrera - Dominican - Hotel Project
Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.
frequently asked questions
If you have any questions, you can contact me at any timeDo you have a 24/7 emergency response team to deal with emergencies?
In which regions of the world does your company conduct business?
What after-sales services do you provide?
What is your quality assurance process?
How long is the life of your wires and cables?
Please introduce the founding and development of the company?
What types of wires and cables does your company produce?
Where is your factory?
How long does it take to complete your order?
Do you provide customized wire and cable solutions?
What payment methods are accepted for purchasing wires and cables?
Are your cables certified by industry standards?
Home











Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China
